Virtually frameless glass
Point-fixed systems using SS 316 stainless steel spider fittings.

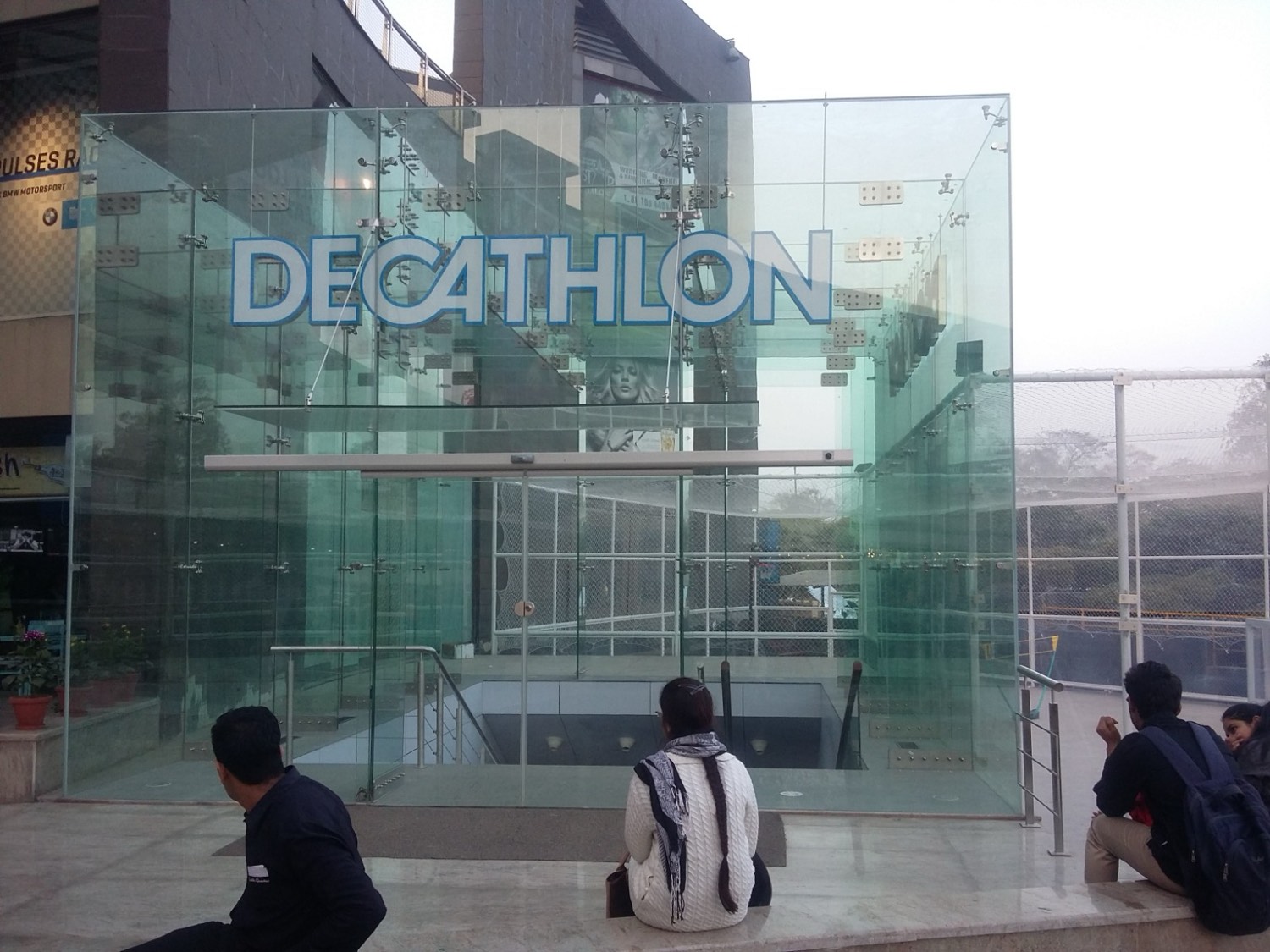

Point-Fixed Spider System
Toughened/laminated glass panels suspended via SS 316 spider fittings for a virtually frameless façade.
Glass Canopy & Atrium
Sloped and overhead glass for entrances, atriums and covered walkways.
Glass Partition & Lobby Wall
Floor-to-ceiling glass for offices, hotels and showrooms with minimal hardware profile.
Spider glazing specifications
| System | Point-fixed, virtually frameless structural glass |
|---|---|
| Fittings | SS 316 stainless-steel spider brackets and routels (bolt fixings) |
| Glass | 10–19 mm toughened, heat-soaked or laminated glass; DGU options |
| Support | Glass fins, MS / SS structure or tension-cable supports |
| Finishes | Mirror-polished or satin stainless fittings |
| Applications | Entrance lobbies, canopies, atriums, storefronts, skylights and partitions |
| Quality | Heat-soaked glass to reduce spontaneous breakage risk; engineered fixings |
Maximum transparency, minimal structure
Frameless look
Point fixings replace bulky frames, so the glass — not the structure — is what people see.
More daylight
Uninterrupted glass spans flood lobbies and atriums with natural light.
Engineered safety
Toughened, heat-soaked or laminated glass on SS 316 fittings designed for the load.
Premium impression
A signature frameless entrance or façade for hotels, showrooms and offices.
Where spider glazing is used
Spider glazing is the system behind frameless glass entrances, double-height lobbies and atriums where the goal is maximum transparency. Toughened glass panels are held at the corners by stainless-steel spider fittings, so the structure almost disappears and views stay uninterrupted.
It is widely specified for corporate receptions, hotel lobbies, showrooms, shopping-mall storefronts, glass canopies and skylights across Delhi NCR. We engineer the glass, fittings and supporting structure together so each installation is both striking and structurally sound.
Spider glazing questions
Spider glazing is a point-fixed glass system in which panels are held by stainless-steel “spider” fittings at their corners instead of a continuous frame, creating a virtually frameless glass surface.
Yes. It uses toughened and often heat-soaked or laminated glass with engineered SS 316 fittings and supports, all designed for the wind and dead loads of the specific installation.
Entrance lobbies, double-height atriums, storefronts, glass canopies, skylights and feature partitions in offices, hotels, malls and showrooms.
The stainless fittings are corrosion-resistant and low maintenance; glass is cleaned like any façade glazing. We advise on access and cleaning at handover.
Service area: We design, fabricate and install spider glazing across Greater Noida, Noida, Delhi, Ghaziabad, Faridabad and Gurugram, with a free site visit and quotation within 24 hours.
Designing a frameless façade?
Free site visit and measurement across Delhi NCR within 24 hours.
